Laser scanning of a gear.
Nikon Metrology has introduced the HN-C3030, a new non-contact measuring system for high-speed, 3D measurement of gears, impellers, hobs, turbine blades and other complex components in single-figure micron accuracy.
Featuring an advanced laser scanner, the HN-C3030 represents a major step forward in ultra-fast shape evaluation compared with traditional tactile measurement. By scanning a component and comparing it with the original CAD file, users obtain better insights into product conformity, resulting in faster problem-solving and earlier time-to-market.
To achieve high precision, Nikon has developed special optics for the laser scanner that enables inspection of glossy or dark surfaces without manual preparation like powder spraying. The HN-C3030 excels when measuring highly detailed, complex gears such as hypoid, bevel and helical up to a maximum of 300 mm diameter by 300 mm deep.

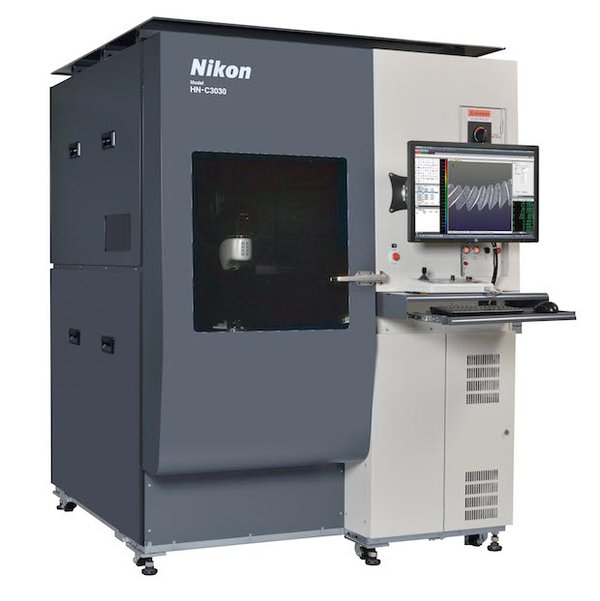

The new HN-C3030 3D laser scanning inspection system from Nikon Metrology.
The flexible, compact HN-C3030 controls a high-precision 3-axis drive system as well as a 360-degree rotary stage and a -20 to +135 degree laser scanner swing arm. It enables wide areas covering the top and sides and even the bottom surface of parts to be scanned. In addition, the direction of the laser scanner can be rotated between -180 and +180 degrees, allowing scanning of shapes from optimum angles.
The system is capable of inspecting all toothed surfaces on a single automotive bevel gear in five minutes, for example, acquiring surface point clouds at a rate of 120,000 points per second. The result is a full detailed 3D scan of the part providing deep insight into the surface profile and tooth wear that are hardly detectable by tactile measurement.
The software features acquisition and analysis tools for optimum scanning of various sizes, shapes and surface conditions. Comparison of point clouds to the original CAD file provides colourful, easy-to-interpret 3D deviation reports. For more advanced inspection, dedicated gear software enables easy creation of teaching files and tooth analysis in the same format as with conventional contact measurement systems.
The system is not restricted to use inside temperature-controlled rooms. When equipped with an optional thermal regulator, it can also be used on the shop floor and in other production environments.
